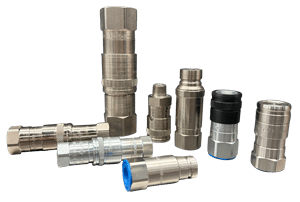

Flush Face, Non-Spill, Push-to-Connect Quick Couplers

SafeWay brand flush face quick disconnects offer versatility for a multitude of fluid transfer applications and media. All product series within this category (excluding FDB series) are interchangeable with other ISO 16028 quick disconnects, including our unique connect-under-pressure tip (FFEC49) and self-relieving tip (FF49-3-8-CV), designed specifically to address thermal expansion. SafeWay flush face products feature optimized flow performance, are manufactured in the U.S.A., and 100% leak tested before leaving our facility.

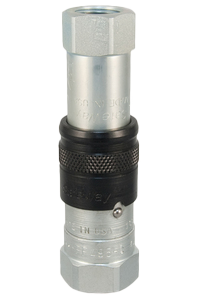

• FF49 Series features rugged flush-face valving for no-spill dry breaks. The 3/8″ size meets HTMA dimensional standards while providing significantly higher pressure containment than other brands. Stainless steel body, Buna-N seal.

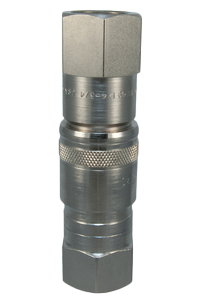

• FFE49 Series is a non-spill, push-to-connect, fluid transfer quick coupling designed for use with most industrial fluids. 1/4” through 1” body size. Anti-blowout Buna-N and Teflon® tip half seals.

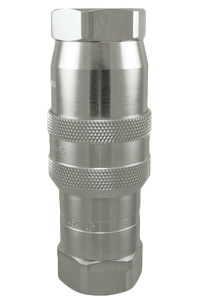

• FDB49 Series features rugged flush-face valving for no-spill dry breaks and offers high flow capacity. 316L stainless steel body, low temp Viton® seal.
• FFEC49 Series allows one-hand connection with trapped residual pressure in the nipple and works with ISO 16028 female couplers in 1/2” body sizes.

If you have product questions or would like to discuss cusotm solutions for your application, our team is available to help!
